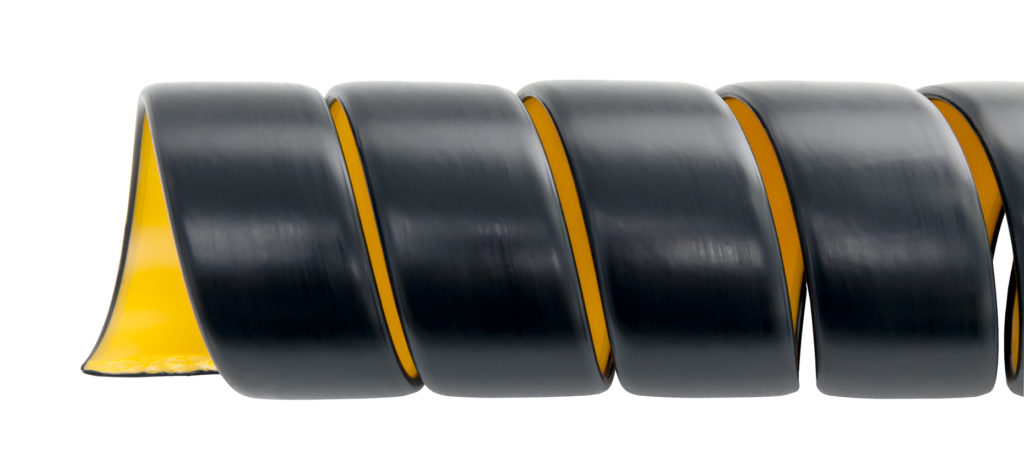

Safe-Spiral ABRA is a 2-coloured Wear Indicator spiral. It has black surface and yellow interior.
Safe-Spiral ABRA helps to identify those problematic points that are exposed to abrasion and / or hard hits and therefore need more punctual monitoring: once the black top layer wears off and the yellow color appears this indicates that the spiral should soon be replaced.
Abrasion of this spiral is very minimal even though the thickness of the top layer is only 0.5 mm. It would take approximately 1000 km or 415 hours to wear off at 1.9 MPa surface pressure (pin-on-disk tester).
Note
Safe-Spiral ABRA is not a stock item but produced after order.
Safe-Spiral ABRA features
- Produced by double extrusion
- Protects hydraulic and pneumatic hoses against abrasion, shocks and general wearing and therefore prolongs the life of your hoses
- Tolerates both frost and heat
- Resistant to acids, oils and solvents
- Contains antistatic additive
- Easy to install
Available sizes
Available in outer diameters from 16 mm to 110 mm.
| Nominal outer / inner diameter mm | Recommended usage range Hose diameter mm | Safeplast article no. | Roll length | Weight average kg / m | Wall W mm | Pitch P mm |
|---|---|---|---|---|---|---|
| 16 / 13.4 | 13 – 18 | DC016R25MK | 25 m | 0.06 | 1.3 | 12 |
| 20 / 16.0 | 16 – 22 | DC020R25MK | 25 m | 0.09 | 2.0 | 20 |
| 25 / 20.6 | 20 – 27 | DC025R25MK | 25 m | 0.15 | 2.2 | 21 |
| 32 / 27.0 | 27 – 36 | DC032R25MK | 25 m | 0.19 | 2.5 | 22 |
| 40 / 34.6 | 34 – 44 | DC040R25MK | 25 m | 0.30 | 2.7 | 24 |
| 50 / 43.2 | 43 – 55 | DC050R25MK | 25 m | 0.40 | 3.4 | 30 |
| 63 / 55.6 | 55 – 67 | DC063R25MK | 25 m | 0.65 | 3.7 | 37 |
| 75 / 66.2 | 66 – 80 | DC075R20MK | 20 m | 0.73 | 4.4 | 42 |
| 90 / 80.2 | 80 – 98 | DC090R15MK | 15 m | 1.20 | 4.9 | 45 |
| 110 / 99.0 | 99 – 115 | DC110R10MK | 10 m | 1.76 | 5.5 | 50 |

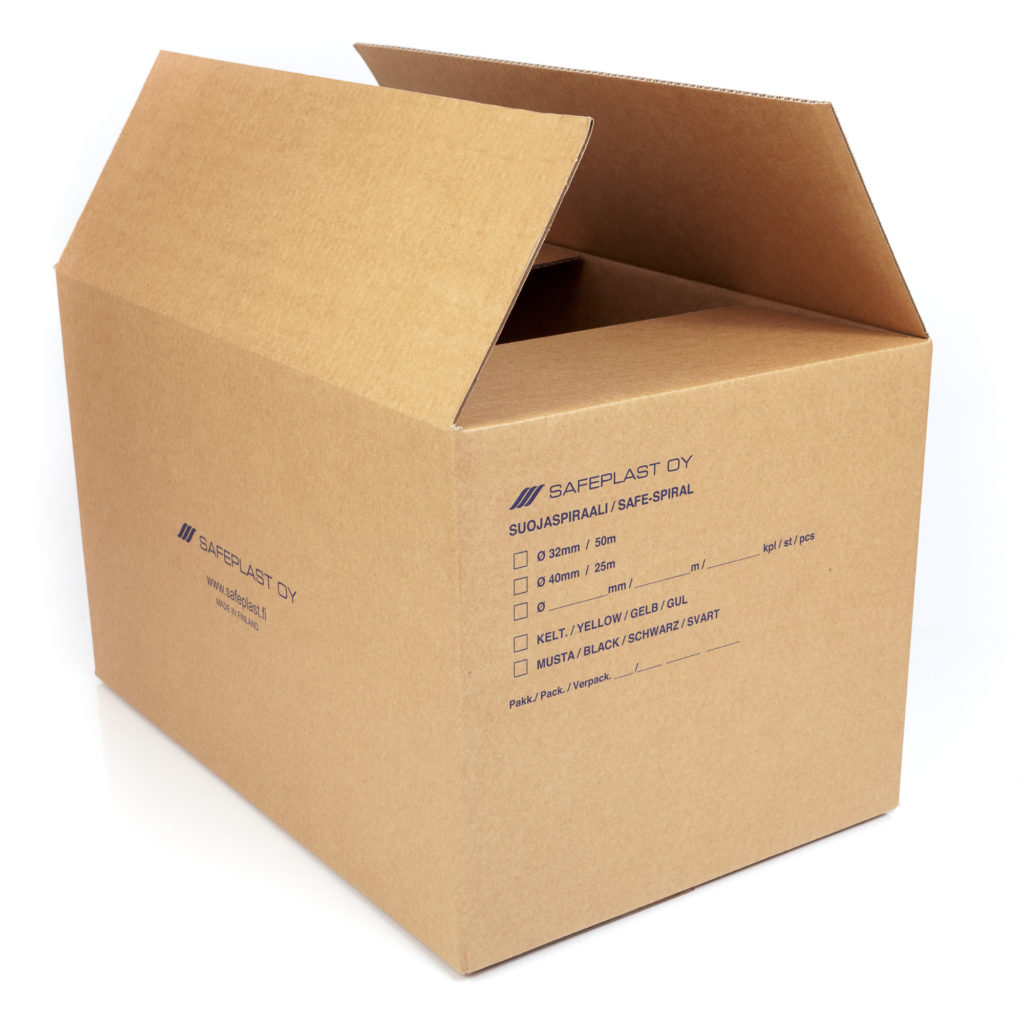

Coils
Safe-Spirals are packed in boxes suitable for 120 x 80 cm Euro-pallets.
