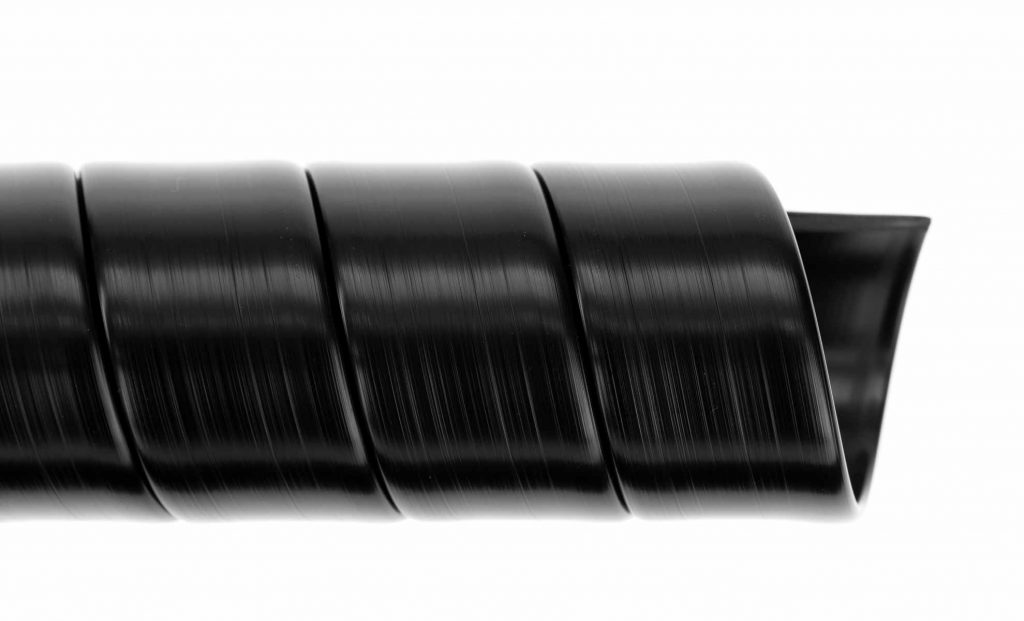

Safe-Spiral ASTA is a permanently antistatic spiral which is designed for explosive surroundings, like underground mines and other special environments that demand conductivity.
Safe-Spiral ASTA conforms with EN ISO 80079-36:2016 which is the ATEX -related standard for “Non-Electrical Equipment for potentially Explosive Atmospheres”.
Note
Delivery time: 4–5 weeks after order.
Safe-Spiral ASTA Features
- HD polyethylene with a conductive thermoplastic compound
- Produced by double extrusion
- Protect hydraulic and pneumatic hoses against abrasion, shocks and general
wearing and therefore prolongs the life of your hoses - Tolerate both frost and heat
- Resistant to acids, oils and solvents
- Easy to install
Available sizes
Available in outer diameters from 20mm to 110mm.
Available colours
Black
| Normative outer / inner Ø mm | Recommended range Hose diameter mm | Safeplast article no. | Roll length | Weight average kg / m | Wall mm | Pitch mm |
|---|---|---|---|---|---|---|
| 20 / 16.0 | 16 – 22 | 020R25ASTA | 25m | 0.11 | 2.0 | 20 |
| 25 / 20.6 | 20 – 27 | 025R25ASTA | 25m | 0.17 | 2.2 | 21 |
| 32 / 27.0 | 27 – 36 | 032R25ASTA | 25m | 0.23 | 2.5 | 22 |
| 40 / 34.6 | 34 – 44 | 040R25ASTA | 25m | 0.29 | 2.7 | 24 |
| 50 / 43.2 | 43 – 55 | 050R25ASTA | 25m | 0.41 | 3.4 | 30 |
| 63 / 55.6 | 55 – 67 | 063R25ASTA | 25m | 0.55 | 3.7 | 37 |
| 75 / 66.2 | 66 – 80 | 075R20ASTA | 20m | 0.88 | 4.4 | 42 |
| 90 / 80.2 | 80 – 98 | 090R15ASTA | 15m | 1.20 | 4.9 | 45 |
| 110 / 99.0 | 99 – 115 | 110R10ASTA | 10m | 1.61 | 5.5 | 50 |
*** Due to the conductive compounds the above-mentioned measurements are normative as the product tends to shrink a bit after cooling.
Coils
Safe-Spirals are packed in boxes suitable for 120 x 80 cm Euro-pallets.
